MÁY NÉN KHÍ CAO ÁP SVB 1300/250

  • (1 đánh giá)
  • Nhà sản xuất: JAB
  • SKU: SVB 1300/250

Nơi sản xuất: Đức

Giá: Gọi liên hệ

Lượt xem: 1.357

Đặt mua ngay

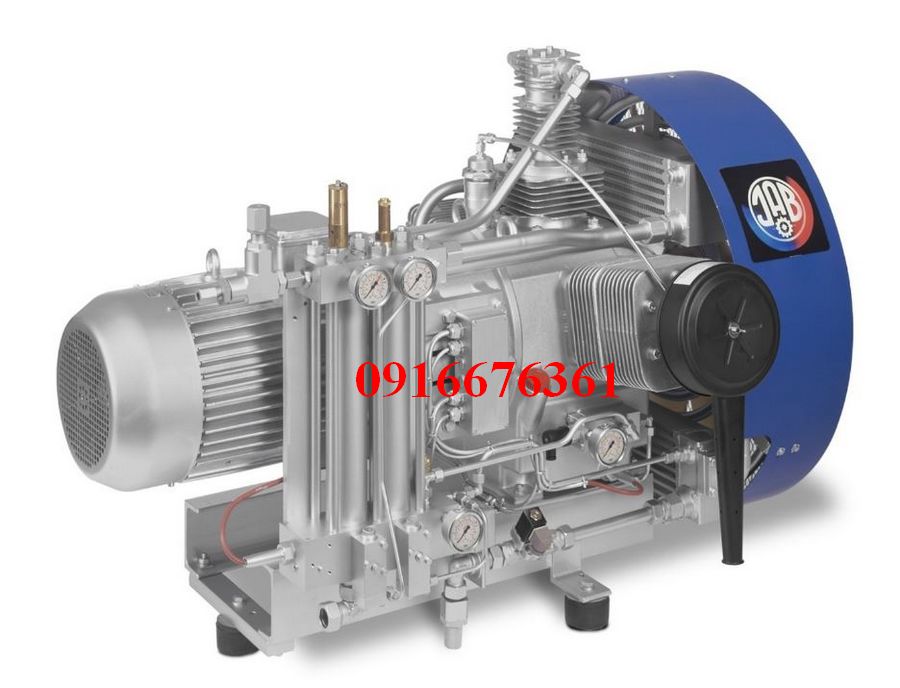

MÁY NÉN KHÍ CAO ÁP SVB 1300/250
Hãng sản xuất: JAB
Model máy: SVB 1300/250
Ứng dụng: Nén không khí
Áp lực làm việc max: 250 bar
Cấp nén: 3 cấp
Công suât: 37 kW
Lưu lượng: 1700 L / phút
Vòng quay: 1500 rpm

Xem thêm: MÁY NÉN KHÍ CAO ÁP SVB 1300/250

Đánh giá của bạn về sản phẩm này:

Sản phẩm cùng danh mục

Thông số kỹ thuật

Bảo hành

Thông tin sản phẩm

Air-Compressor medium-pressure SVB1300/250

Description

Description

A higher volumetric efficiency and alignment of the cylinders directly in the cooling-air flow are the pre-conditions for low condensation temperatures and therefor long service life of the valves. The generously dimensioned industrial components guarantee long inspection intervals and low maintenance costs. A special system for leakage testing of the whole machine during standstill (without running noises) simplifies the diagnosis during maintenance work.

Compressor:

  • Type-tested safety valves and manometers for all pressure stages
  • High efficient cooling
  • Maintenance-free oil- and water-seperator
  • Energy efficient IE3 motor, direct flanged
  • Manometer for second stage and oil-pressure
  • Oil-pressure-lubrication and oil-pressure-contorl
  • Oil-pressure-controlled automatic discharge
  • Vibration-free assembly

Compressor unit:

  • Compressor
  • PLC Control
  • Pressure sensor for end-pressure
  • End-temperature-control
  • Flexible hoses
  • Ready mounted and wired on common base

Optional equipment:

  • Microfilter at outlet
  • Temperatur-contorl of all pressure stages
  • Compressor-heating
  • Sound insulation hood
  • Condensate tank for wall mounting

Technical data

Application, medium

Luft / Air

Max. operating pressure

250 bar

Stages

4

Delivery quantity

1700 l/min

Driving power

37 kW

Drive speed

1500 rpm

Cylinder count

4

Operating temperature

5 - 40 °C

Noise level

90 dB (A)

Length

1570 mm

Width

1050 mm

Height

1085 mm

Weight

690 kg

Outlet temperature

ca. 10 °C über Eingangstemperatur

  • Manufacturer Article No.: SVB1300/250
